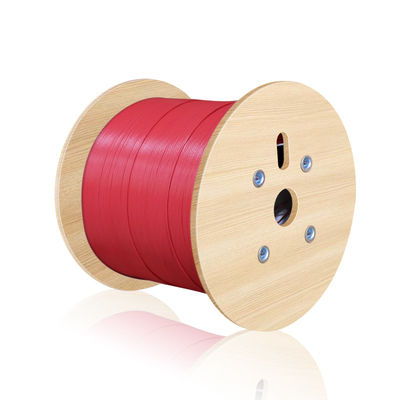

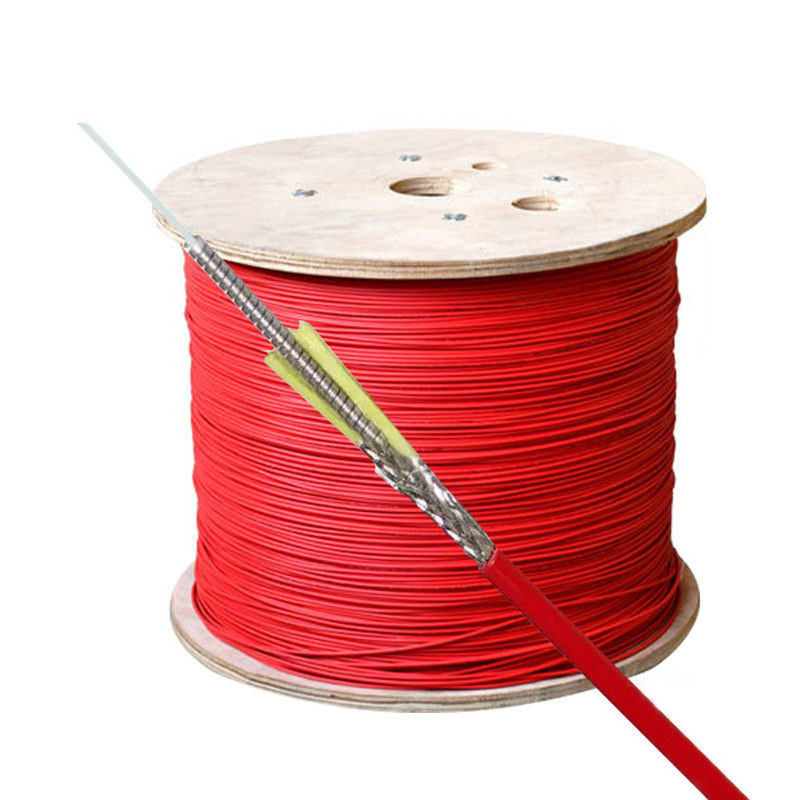

Red Indoor Flame Retardant Jacket DTS Distributed Temperature Sensing Fiber Optic Cable

Nama merek:	HX Fiber
Nomor Model:	HX-GW1
MOQ:	1 kilometer
harga:	negotiable
Rincian kemasan:	Poros kayu + Kotak karton ekspor
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

CE/ROHS/ISO9001

Jenis:

Kabel Serat Optik, Serat Multimode

Jumlah Konduktor:

Warna:

merah

Aplikasi:

Pengawasan Keamanan Telekomunikasi

Nama produk:

Kabel Serat Optik Penginderaan Suhu Terdistribusi (DTS)

Jaket:

Panjang:

Panjang Kustom

Paket:

Gendang Kayu

Jumlah Serat:

2-288 Core

Layanan:

Terima OEM ODM

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1 juta kilometer per bulan

Menyoroti:

Kabel serat optik DTS

Deskripsi Produk

PRODUCT PARAMETERS

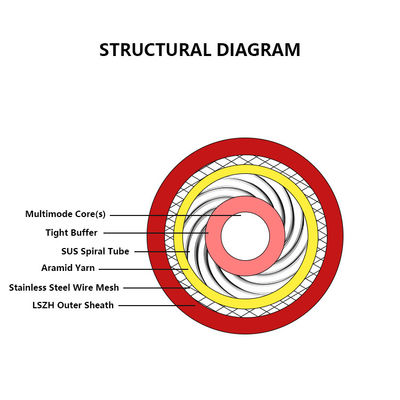

Product name	Temperature sensing fiber optic cable

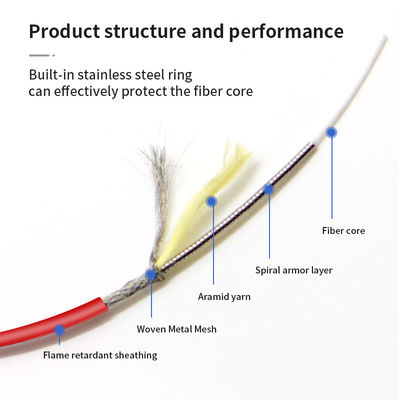

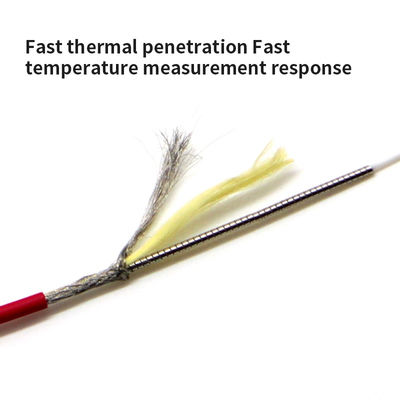

Steel wire	Stainless steel spiral tube

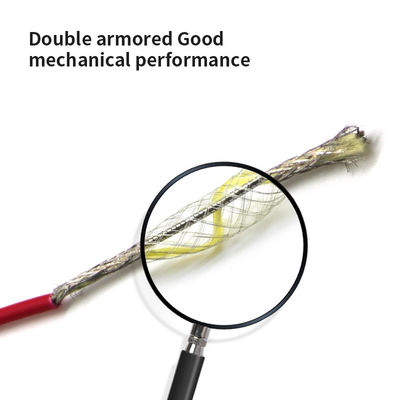

Reinforced parts	Aramid yarn/stainless steel woven mesh
Diameter	3.0mm
Outer sheath	LSZH/Flame retardant PVC
Fiber optic	Multimode 62.5/125
Minimum bending radius	Dynamic 60mm/Static 30mm
General attenuation	≤ 3.0dB/km (850nm), ≤ 1.0dB/km (1300nm)
Allowable stretching	Long-term 200/Short-term 400 (N)
Allowable flattening force	Long-term 200/Short-term 400 (N/10cm)
Applicable temperature	Long-term -40 ℃ to 80 ℃/Short-term 2H120 ℃
Note: The above data is for reference only, please refer to the actual product parameters.
PRODUCT CHARACTERISTICS
①Fully distributed measurement
②Long measurement distance
③Thirty year maintenance free fiber optic cable
④Easy integration and installation
⑤Can withstand harsh environments
⑥Wide temperature measurement range

PRODUCT DESCRIPTION

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
