OPGW High Voltage Flame Retardant Cable 48 Core Single Mode With Lightning Protection

Nama merek:	HXCOWO
Model Number:	HX-DL2
MOQ:	1000 Meter
harga:	negotiable
Rincian kemasan:	Poros kayu + Kotak karton ekspor

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

Jenis:

Kabel Serat Listrik

Jumlah Konduktor:

Nama produk:

Kabel Serat OPGW

Aplikasi:

Komunikasi Telekomunikasi

Panjang:

Panjang Kustom

Jenis serat:

G652D/G657A1/G657A2

Paket:

Gendang Kayu

Jumlah Serat:

2-288 Core

Kata Kunci:

Kecepatan tinggi

Suhu operasi:

40~+70

Layanan:

Terima OEM ODM

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1500000 Potongan/potongan per Bulan

Menyoroti:

High Voltage Flame Retardant Cable

OPGW High Voltage Cable

48 Core Single Mode OPGW

Deskripsi Produk

48 Core Single Mode OPGW High Voltage Flame Retardant Cable with Lightning Protection

TECHNICAL PARAMETERS
Cross-Sectional Area (mm²)	Rated Breaking Force (kn)	Fiber Cable Diameter (mm)	Fiber Cable Weight (kg/km)
40	54	8.7	313
50	61.4	9.6	348
60	62.7	10.8	391
70	80.8	11.4	478
80	84.6	12	538
90	57.3	12.6	587
PRODUCT FEATURES
①Using advanced stainless steel pipe production technology, the pipe is filled with water-blocking compounds
②The short-circuit current causes little mutual interference between the power grid and the communication network
③The remaining length of the optical fiber and the cable core twisting pitch ensure that the optical cable is not stressed when operating at maximum tension
④Compact structure, high tensile strength
⑤The specifications are similar to commonly used ground wires, and the installation is very convenient and can directly replace the original ground wires

PRODUCT DESCRIPTION

POWER FIBER OPTIC CABLE OPGW

High-speed and stable transmission

OPGW model cross-section optional: 30/40/50/60/70/80/90/100

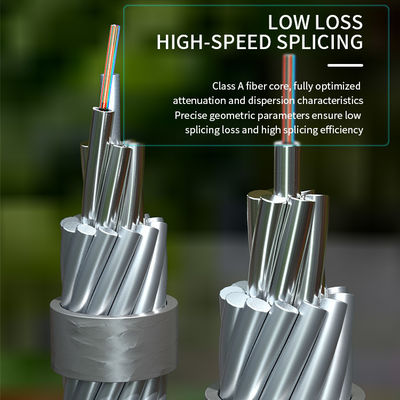

LOW LOSS, HIGH-SPEED SPLICING

Class A fiber core, fully optimized attenuation and dispersion characteristics

Precise geometric parameters ensure low splicing loss and high splicing efficiency

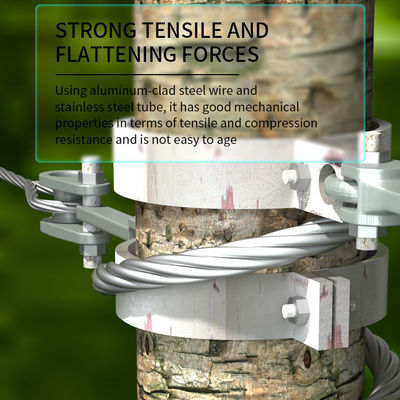

STRONG TENSILE AND FLATTENING FORCES

Using aluminum-clad steel wire and stainless steel tube, it has good mechanical properties in terms of tensile and compression resistance and is not easy to age

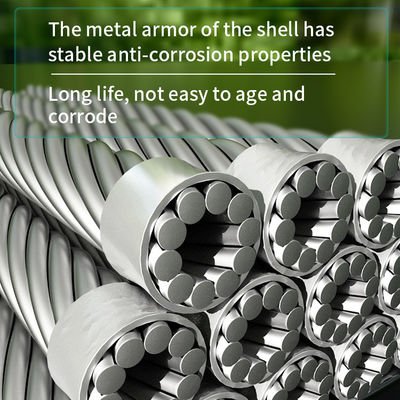

The metal armor of the shell has stable anti-corrosion properties

Long life, not easy to age and corrode

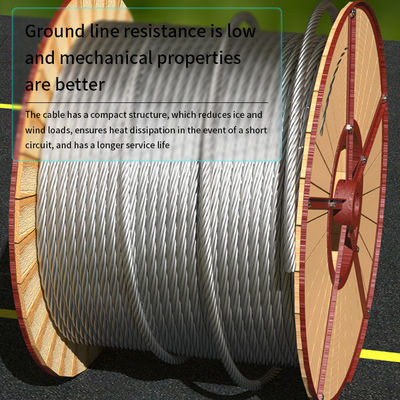

GROUND LINE RESISTANCE IS LOW AND MECHANICAL PROPERTIES ARE BETTER

The cable has a compact structure, which reduces ice and wind loads, ensures heat dissipation in the event of a short circuit, and has a longer service life

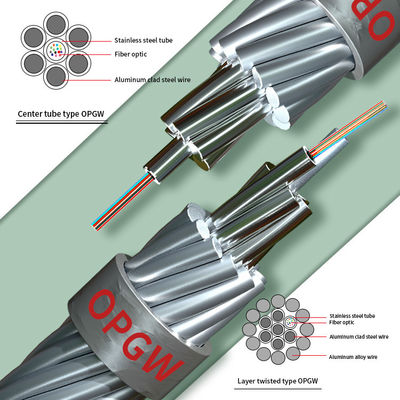

OPGW STRUCTURE DIAGRAM

①Stainless steel tube

②Fiber optic

③Aluminum clad steel wire

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables. With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
