G652D G657A1 G657A2 Spiral Steel Pipe Indoor Armored Optical Fiber Cable for Telecom

Nama merek:	HX Fiber
Model Number:	HX-LXK3
MOQ:	1000 Meter
harga:	negotiable
Rincian kemasan:	Poros kayu + Kotak karton ekspor

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

Jenis:

Kabel Serat Optik, Dalam Ruangan

Jumlah Konduktor:

Warna:

Warna yang disesuaikan

Nama produk:

Kabel Serat Optik Berlapis Baja Spiral

Aplikasi:

Komunikasi Telekomunikasi

Jaket:

PVC LSZH LSOH PE HDPE

Panjang:

Panjang Kustom

Paket:

Gendang Kayu

Jenis serat:

G652D/G657A1/G657A2

Layanan:

Terima OEM ODM

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1500000 Potongan/potongan per Bulan

Menyoroti:

G652D Indoor Armored Optical Fiber Cable

G657A1 Indoor Armored Optical Fiber Cable

G657A2 Indoor Outdoor Armored Fiber

Deskripsi Produk

G652D G657A1 G657A2 Spiral Steel Pipe Indoor Armored Optical Fiber Cable for Telecom

PRODUCT PARAMETERS
Tabulation	Single mode	Multi mode	Multi mode
Fiber core diameter	9±0.4	50±2.5	62.5±2.5
Cladding diameter	125±1	125±1	125±1
Fiber optic cable loss	0.4bd/km@1310nm	3.5bd/km@850nm	3.5bd/km@850nm
Fiber optic cable loss		0.3bd/km@1550nm	1.5bd/km@1300nm	1.5bd/km@1300nm
Outer diameter of fiber optic cable	2.9±0.1
Number of fiber cores	2Core (multi core customizable)
Fiber optic cable weight	~15
Temperature performance	-20 ℃ -+70 ℃
Bending radius	Dynamic 20x OD/Static 10x OD
Compressive strength	Long term 1000/Short term 3000
Tensile strength	Dynamic 300/Static 600
Sheath material	PVC, LSZH, PE, PU, PTEE, SGS, UL
Sheath color	Multiple colors available

PRODUCT DESCRIPTION

STAINLESS STEEL SPIRAL ARMOR DUPLEX FIBER OPTIC CABLE

Factory Direct Sales Support Customizatioon

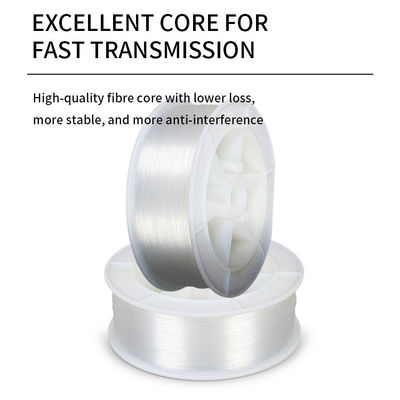

EXCELLENT CORE FOR FAST TRANSMISSION

High-quality fibre core with lower loss, more stable, and more anti-interference

SUPERIOR QUALITY ECO-FRIENDLY OUTER SHEATH

Wear-resistant, corrosion resistant, waterproof, sunproof Free choice of sheath materials(PVC/LSZH/PE/TPU)

STURDY,DURABLE,STABLE AND LONG-LASTING

Uniformly tested for tensile, bending and swaying

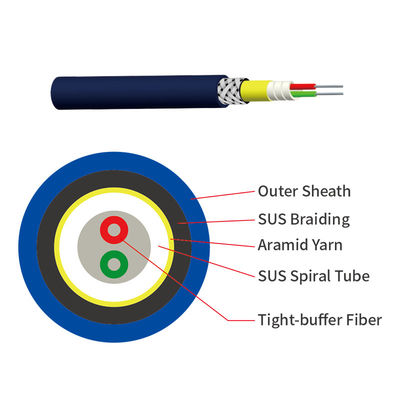

STRUCTURAL LAYERS

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
