Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable

Nama merek: HX
Nomor Model: HX-DL1
harga: negotiable
Rincian kemasan: Double jacket single mode OS1 OS2 outdoor aerial dielectric ADSS 48 core fibre optic cable
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
Guangdong, Cina
Sertifikasi:
RoHS
Jenis:
Kabel serat optik
Jumlah Konduktor:
≥ 10
Aplikasi:
Komunikasi Telekomunikasi
Nama produk:
Kabel Serat ADSS
Warna:
Hitam
Jaket:
Selubung PE Ganda/Tunggal
Jumlah Serat:
6 8 12 24 36 48 72 96 144 288
Jenis serat:
Mode Tunggal / Multi Mode
Panjang:
Panjang Kustom
Jenis kabel:
Kabel Serat Optik Luar
Pengemasan:
Gulungan Kayu / Kayu Lapis
Pelabuhan:
Shenzhen
Menyediakan kemampuan:
1500000 Potongan/potongan per Bulan
Menyoroti:

Single Mode ADSS Fiber Cable

,

Outdoor Self Supporting Aerial Fiber Cable

,

ADSS Fiber Cable G657A

Deskripsi Produk

Single Mode Custom ADSS Outdoor 4 6 8 10 12 Core G657A Fiber Optic Cable for Aerial

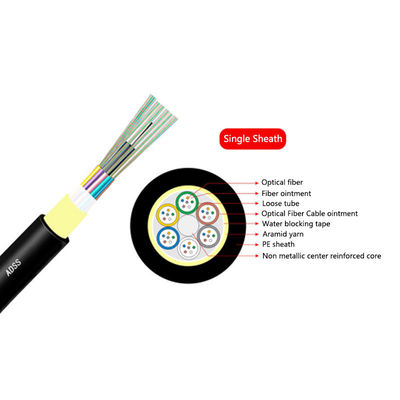

Single sheath







Reference outer diameter
(mm)

Reference weight(Kg/Km)



Daily average working tension (KN)


Maximum allowable working tension
(KN)


Breaking strength (KN)

PE outer sheath
AT outer sheath



9.0
75
85
1.2
3
7
9.8
80
90
1.5
5
10
10
90
100
2
6
15
10
90
100
2.2
8
18

Tensile element cross-sectional area (㎜²)

Elastic Modulus
 (KN/㎜²)

Operating, storage and transport temperature range (℃)

Thermal expansion coefficient
(10-6/K)

suitable span
 (M)
3
4.5

-40~+60
1.2
50
3.5
7

-40~+60
1.3
100
4.5
8.3

-40~+60
1.3
150
7.5
9.5

-40~+60
1.3
200

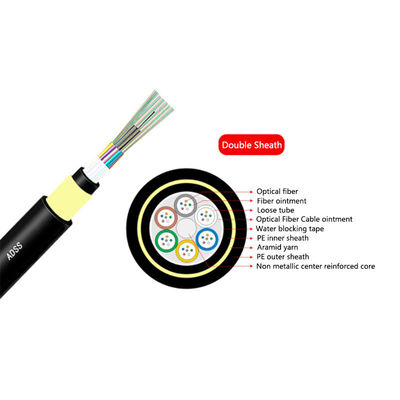

Double sheath










Reference outer diameter
(mm)

Reference weight(Kg/Km)



Daily average working tension (KN)
Maximum allowable working tension
(KN)



Breaking strength (KN)




PE outer sheath
AT outer sheath






11.5
125
136
1.5
4
10



12
132
142
2.25
6
15



13.3
137
148
3
8
20



13.6
145
156
3.6
10
24



13.8
147
159
4.5
12
30



14.5
164
177
5.4
15
36



14.9
171
185
6.75
18
45



15.1
179
193
7.95
22
53





Tensile element cross-sectional area (㎜²)


Elastic Modulus
(KN/㎜²)

Operating, storage and transport temperature range (℃)

Thermal expansion coefficient
(10-6/K)

Suitable span (m) (corresponding to meteorological conditions)








A
B
C
D
4.6
7.6

-40~+60
1.8
160
100
140
100
7.6
8.3

-40~+60
1.5
230
150
200
150
10.35
9.45

-40~+60
1.3
300
200
290
200
13.8
10.8

-40~+60
1.2
370
250
350
250
14.3
11.8

-40~+60
1.0
420
280
400
280
18.4
13.6

-40~+60
0.9
480
320
460
320
22
16.4

-40~+60
0.6
570
380
550
380
26.4
18

-40~+60
0.3
670
460
650
460
Meteorological region
Wind speed (m/s)
Icing (mm)
Extra negative (N/m)
A
25
0
0.7
B
35
0
0.7
C
10
5
2.5
D
10
10
4.4

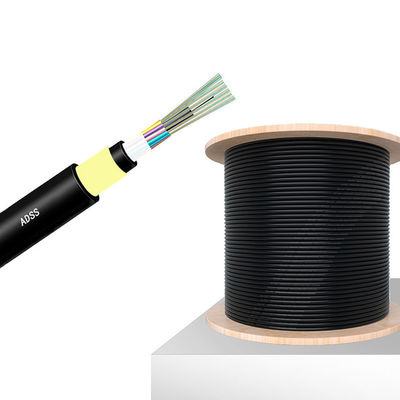

Product Description
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 0
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 1
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 2
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 3
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 4

Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 5

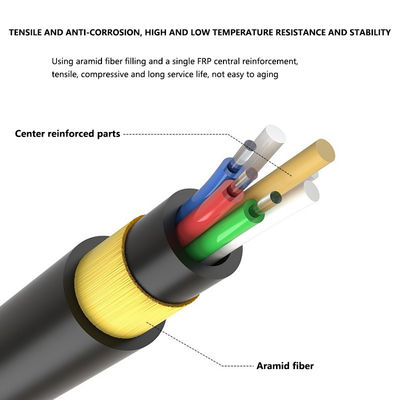

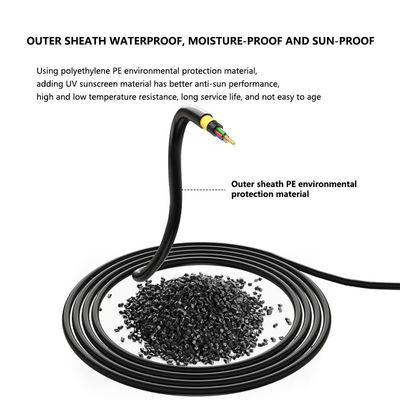

Product Design
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 6
Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”
Customer evaluation
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 7
Company Profile

Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 8
Dongguan HX Fiber Technology Co.,Ltd Located in Dongguan, China. We are a direct manufacturer More than 12 Years experience in producing Armored Optical Cables, Indoor / Outdoor Fiber Optic Cable,FTTH Drop Cable,Connector, Patch Cords, Pigtail, Adapter, PLC Splitter, MPO/MTP Solution The Certifications are ISO 9001:2015 , UL,RoHS, . we own 5 lines for cable production, 87 armoring machines for armored cables. The customers who have cooperated with us: Amphenol Industrial, Rosenberger,YOFC, FiberHome, Foxconn, ZTT. Shipped to USA,Canada,Australia, Belgium, Britain, France, Spain, Italy, Holland, Portugal...... OEM , LOGO Custom are accept

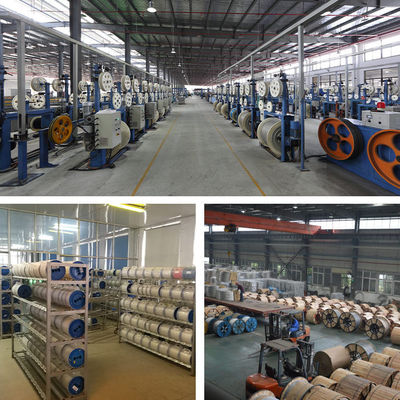

Service&Production Capacity
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 9
Foreign Exhibitions
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 10
Cooperative Brand&Certification
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 11
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 12
Payment&Transportation Method
Single Mode ADSS Fiber Cable G657A Outdoor Self Supporting Aerial Fiber Cable 13
FAQ
1. Are you the real manufacturer?
Yes.  We are the real manufacturer  with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
