SM MM 1M 2M 3M UPC APC 1 Core Fiber Optic Patch Cable For Wifi Network

Nama merek:	HXCOWO
Model Number:	HX-TX1
MOQ:	100 buah
harga:	negotiable
Rincian kemasan:	Tas OPP + Kotak karton ekspor

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

CE/ROHS/ISO9001

Jenis:

Kabel Patch Serat Optik

Penggunaan:

Waktu Jaminan:

1 tahun

Jaringan:

Wired LAN, wifi, 4G, Wiegand

Warna:

Warna yang disesuaikan

Nama produk:

SC ke SC UPC/APC Fiber Patch Cord

Aplikasi:

Komunikasi Telekomunikasi

Jaket:

PVC LSZH LSOH PE HDPE

Panjang:

Panjang Kustom

Jenis serat:

G652D/G657A1/G657A2/OM1/OM2/OM3/OM4

Paket:

Kantong Poli Biasa

Jumlah Serat:

1CORE

Layanan:

Terima OEM ODM

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1500000 Potongan/potongan per Bulan

Menyoroti:

MM Fiber Optic Patch Cable

SM Fiber Optic Patch Cable

3M fiber optic patch cord

Deskripsi Produk

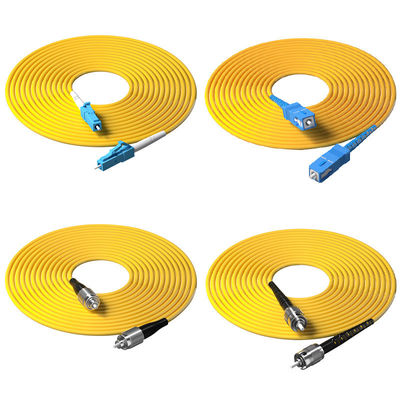

SC LC FC ST Jumper SM MM 1M 2M 3M UPC APC 1 Core Fiber Optic Patch Cable for Wifi Network

PRODUCT PARAMETERS
Connector model	SC/FC/LC/ST
Storage temperature	-10 ° C+40 ° C
Fiber optic cable structure	Single core/Double core/Bundle shape/Flat strip
Bending radius	15×H (H fiber optic cable diameter)
Fiber optic cable diameter	0.9/2.0/3.0/6.5mm in diameter
Working wavelength	single mode 1310-1550nm/multimode 850nm
Fiber optic cable material	PVC/LSZH
Insertion loss	≤ 0.35dB
Product length	Customizable
Return loss	Single mode UPC ≥ 50dB, APC ≥ 60dB
Ferrule end face structure	UPC/APC
Interchangeability	≤ 0.2dB
Tensile strength	>70N
Number of plugging and unplugging	>1000 times
Fiber type	G652D/G657A1/G657A2/0M1/0M2/0M3/0M4
Working temperature	-25 ℃+70 ℃
Ferrule	Ceramic ferrule

PRODUCT DESCRIPTION

FIBER PATCHCORD

Qualiffied Fiber, Flame Retardant Material and Low Insertion Loss

Customized Length and connector Matching( FC/LC/SC/ST

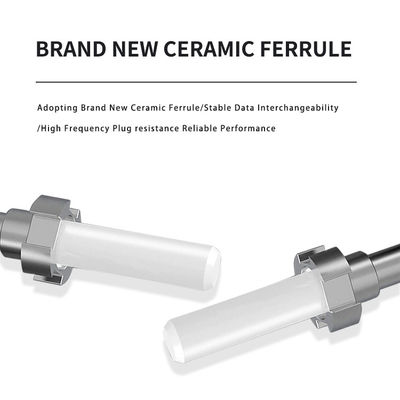

BRAND NEW CERAMIC FERRULE

Adopting Brand New Ceramic Ferrule/Stable Data Interchangeability/High Frequency Plug resistance Reliable Performance

SUPER COMPRESSION AND TENSION RESISTANCE

Strict Testing Procedure

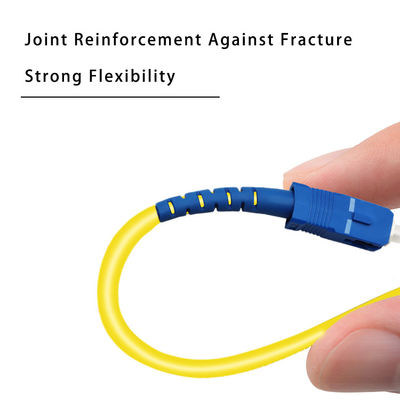

JOINT REINFORCEMENT AGAINST FRACTURE

Strong Flexibility

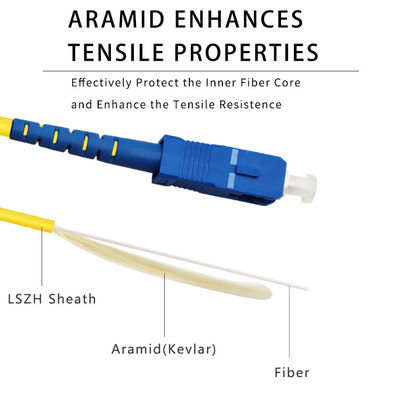

ARAMID ENHANCES TENSILE PROPERTIES

Effectively Protect the Inner Fiber Core and Enhance the Tensile Resistence

FLAME RETARDANT ENVIRONMENTAL PROTECTION ORIGINAL MATERIALS

Brand new PVC/LSZH/PE Materials Strong Tensile and Drag Resistance Low Carbon Non-toxic Safe Using

LOW INSERTION LOSS AND HIGH-SPEED STABILITY

Strict Testing Procedure High Reliability, Excellent Stability, Low light loss and High-speed Stable Transmission

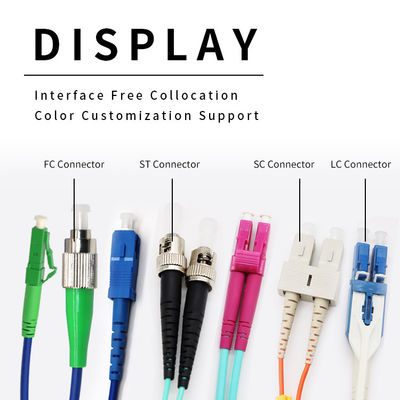

DISPLAY

Interface Free Collocation Color Customization Support

PRODUCT DESIGN

Accept customization,Put Your Good Idea into Reality and Click “Contact Us ”

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators. Annually, there are a bunch of customers visited us from around the world. With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers were together. Our monthly output can reach up to 1500km fiber optic cables.

With the belief of Quality is our culture & Long term business is our goal. So quality is always put to be a first place in our factory. With an excellent management system, we passed ISO9001:2015 certificate in 2021. on Jule 18, 2021, Alibaba group visited us and verified us. We gained the honorary and passed by world-leading inspection company Intertek group. We develop and produce a variety of fiber optical cables and patch cords. with Models such as FTTH, GYXTW, GYFTY, GYTS, GYTA, GYTA53, GYTS53, ADSS, GYTC8S etc. There are many Chinese companies and trading companies purchase fiber cables from us and resale it to the worldwide. Our products are exported to the Europe and America, Asia, South America, Africa etc. Welcome to visit our factory !

SERVICE & PRODUCTION CAPACITY

FOREIGN EXHIBITIONS

COOPERATIVE BRAND & CERTIFICATION

PAYMENT & TRANSPORTATION METHOD

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years’ history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements(logo,package,printing and so on).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation,air transport,Express, etc.
