OEM 3.0mm LC/UPC-LC/UPC Multimode Fiber Optic Patch Cord For Speed Data Transmission

Nama merek:	HXFiber
Model Number:	Kabel Patch HX-17
MOQ:	10 buah
harga:	negotiable
Rincian kemasan:	Kotak kertas

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Jenis:

Kabel Patch Serat Optik

Penggunaan:

FTTH, FTTX

Waktu Jaminan:

10 tahun

Panjang Kustom:

1/2/3/5/7/9/10 m atau sesuai pertanyaan Anda

Kerugian penyisipan:

<0,2 DB

Diameter Kabel:

0,9 / 2,0 / 3,0 mm

Mengembalikan kerugian:

> 55dB

Bahan Selubung Luar:

PVC,LSZH,PU,PE

Tabung Berlapis Baja:

dengan atau tanpa ikuti pertanyaan Anda

Suhu kerja ((°C):

-25°C~+70°C

Konektor Ferrule:

Keramik Zirkonia

Jenis Polandia:

SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC

1 PCS

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1500000 Potongan/potongan per Bulan

Menyoroti:

3.0mm Multimode Fiber Optic Patch Cord

OEM Multimode Fiber Optic Patch Cord

OEM multimode fiber patch cable

Deskripsi Produk

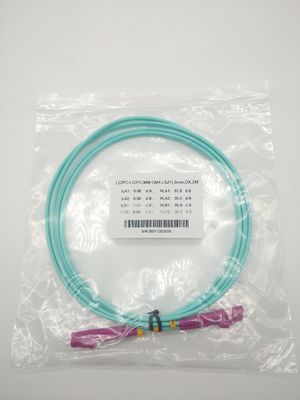

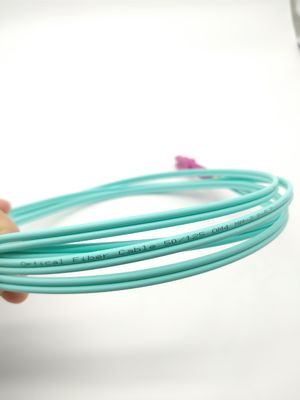

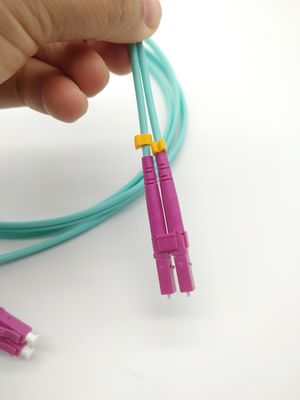

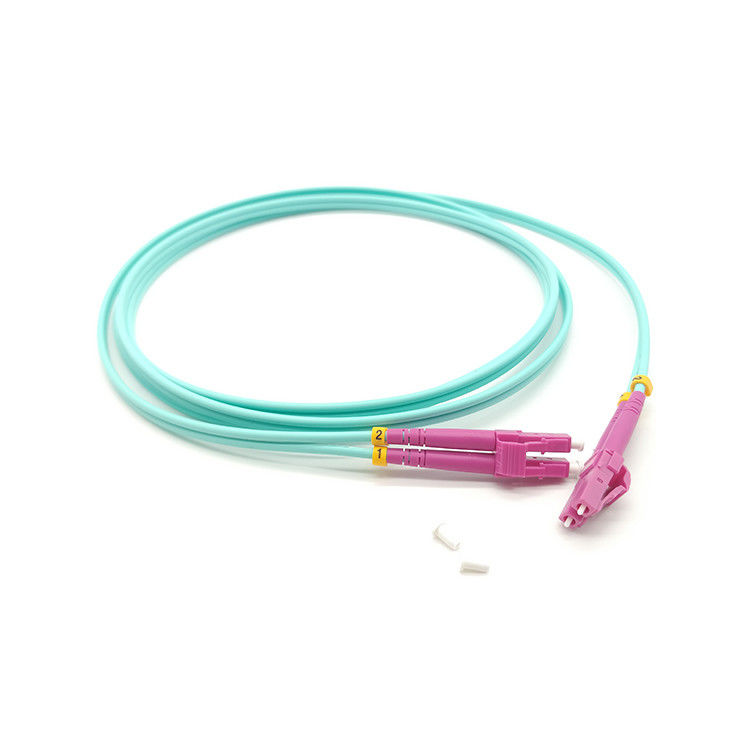

OEM 3.0mm LC/UPC-LC/UPC Multimode Fiber Optic Patch Cord for Speed Data Transmission

Products Description

Connector Type	LC to LC	Jacket OD	3.0mm
Fiber Mode	50/125μm	Jacket Color	Aqua
Polish Type	UPC to UPC	Wavelength	850/1300nm
Fiber Count	Duplex	Jacket Material	PVC/LSZH
Insertion loss	≤3.5dB	Interchangeability	≤2.5dB
Return loss	≥55dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Length	2/5/10/15/20m/100m customized length	delivery date	3-7days according the quantity

Armored Fiber Patch Cord

Structure:

tight-buffered fiber+ stainless steel tube+ Aramid yarn + jacket

Tight-buffered fiber: SM:G652D,G657A1,G657A2 or MM:62.5/125,50/125(OM3,OM4) available 0.9mm PVC tight-buffered fiber
Color:SM/ White or yellow MM/Blue or orange

Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

Good mechanical and environmental characteristics;

More Products

Company View

Exhibitions

Cooperation

Certifications

Production Line

Packaging&Shipping

Tag:

Single Mode Fiber Patch Cord

Multimode Fiber Optic Patch Cord

Kabel Patch Serat Optik Lapis Baja
