rincian produk

Rumah > Produk >

Kabel Patch Serat Optik

LC/UPC-LC/UPC SM 9/125 7.0mm Anti Rodent Outdoor FTTA Armored Optic Fiber Patch Cord 1m/2m/3m/100m

Semua Kategori

kabel serat optik lapis baja luar ruangan

Serat Lapisan Dalam Ruang Luar Ruang

Kabel serat optik dalam ruangan

modul serat optik

Hubungi Kami

sales@hxfiber.com

Hubungi Sekarang

LC/UPC-LC/UPC SM 9/125 7.0mm Anti Rodent Outdoor FTTA Armored Optic Fiber Patch Cord 1m/2m/3m/100m

Nama merek:	HXFiber
Model Number:	Kabel Patch HX-33
MOQ:	10 buah
harga:	negotiable
Rincian kemasan:	Kotak kertas

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Jenis:

Kabel Patch Serat Optik

Penggunaan:

Waktu Jaminan:

10 tahun

Panjang Kustom:

1/2/3/5/7/9/10/100m atau sesuai pertanyaan Anda

Kerugian penyisipan:

< 0,3 dB

Diameter Kabel:

5,0mm, 7,0mm

Mengembalikan kerugian:

> 55dB

Bahan Selubung Luar:

PVC,LSZH,PU,PE

Tabung Berlapis Baja:

dengan baja lapis baja

Suhu kerja ((°C):

-25°C~+70°C

Konektor Ferrule:

Keramik Zirkonia

Jenis Polandia:

SMF:UPC-UPC;UPC-APC;APC-UPC;APC-APC; MMF:UPC-UPC

1 PCS

Pelabuhan:

Shenzhen

Menyediakan kemampuan:

1500000 Potongan/potongan per Bulan

Menyoroti:

7.0mm Kabel Fiber Optic Patch

Kabel Fiber Patch FTTA di luar ruangan

SM 9/125 Kabel Fiber Patch

Deskripsi Produk

Products Description

Connector Type	LC to LC	Jacket OD	7.0mm
Fiber Mode	9/125μm	Jacket Color	Black
Polish Type	UPC to UPC	Wavelength	1310/1550nm
Fiber Count	Duplex	Jacket Material	LSZH
Insertion loss	≤0.3dB	Interchangeability	≤0.2dB
Return loss	≥55dB	Vibration	≤0.2dB
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Length	2/5/10/15/20m/100m customized length	delivery date	3-7days according the quantity

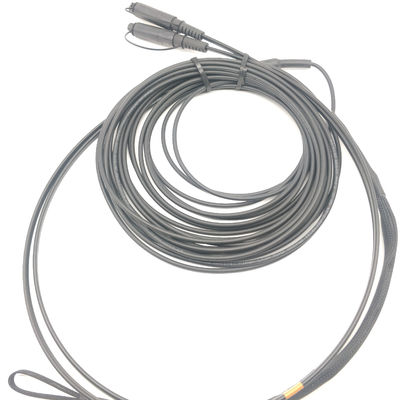

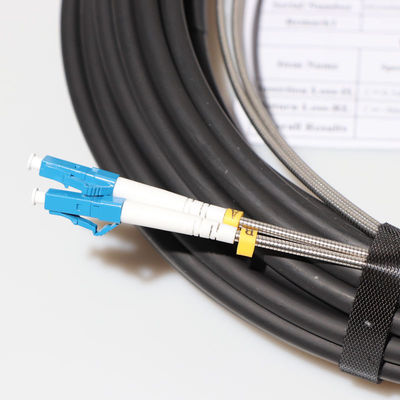

7.0mm Armored Fiber Patch Cord

Structure:

tight-buffered fiber+ Steel Armored + Aramid yarn + jacket

Tight-buffered fiber：

SM:G652D，G657A1，G657A2 MM:62.5/125，50/125(OM3,OM4）

Available 0.9mm PVC tight-buffered fiber

Color:

SM/ White or yellow /

MM/Blue or orange

Characteristics:

1. Suitable for telecommuniction networks
2. Type: FC, SC, ST, MU, LC ,MTRJ,MPO,SMA,E2000,DIN
3. High durability and reliability
4. Low insertion loss and high return loss
5. Single mode/multi mode, PC/UPC/APC patch cord and pigtail available
6. Single core, 2 cores, 4 cres, 6 cores, 8 cores, 12 cores and multi core patch cord and pigtail available
