Harga yang bagus on line

rincian produk

Rumah > Produk >
kabel serat optik lapis baja luar ruangan
>
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
Semua Kategori

kabel serat optik lapis baja luar ruangan

Serat Lapisan Dalam Ruang Luar Ruang

Kabel Serat Optik Taktis

Kabel Komposit Fotolistrik

Kabel Serat Optik Luar

Kabel serat optik dalam ruangan

Kabel Patch Serat Optik

Pigtail Serat Optik

aksesoris serat optik

Kotak Terminal Serat Optik

Panel Patch Serat Optik

Pemisah Serat Optik

modul serat optik
Hubungi Kami
sales@hxfiber.com
Hubungi Sekarang
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama
  • Nama

Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards

Nama merek: HX
Nomor Model: HX-GL2
MOQ: 1
Informasi Rinci
Deskripsi Produk
Informasi Rinci
Tempat asal:
Guangdong, Cina
Sertifikasi:
CE/ROHS/ISO9001
Jumlah konduktor:
≥ 10
Warna kabel:
Hitam
Bahan jaket:
Jaket PE
Struktur kabel:
Tabung Multi-Longgar
Opsi serat:
Itu G652D, G657A, Om1, Om2, Om3, Om4
Anggota kekuatan:
Kawat Baja Pusat atau Plastik yang diperkuat Fiberglass (FRP)
Atenuasi @1310nm:
≤ 0,36dB/km
Atenuasi @1550nm:
≤0,22dB/km
Bandwidth @850nm:
≥500MHz*km
Bandwidth @1300nm:
≥1000MHz*km
Bukaan numerik:
0,200±0,015NA
Panjang gelombang potong:
≤1260nm
Suhu penyimpanan:
-40 ° C hingga +70 ° C.
Kekuatan tarik:
600/1500 N
Radius Bending:
10 hari/20 hari
Menyoroti:

ITU G652D/G657A/OM1-OM4 Armored Fiber Optic Cable

,

YD/T901-2009 & IEC 60794-1 Standards Armored Fiber Optic Cable

,

Underground Armored Fiber Optic Cable

Deskripsi Produk

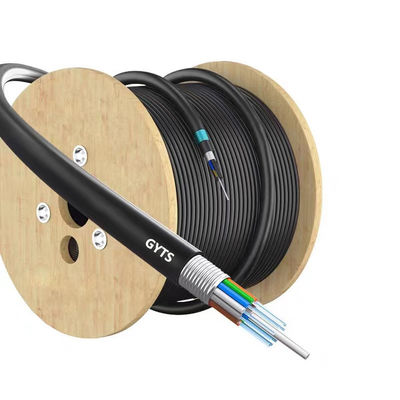

Underground Single Mode Rodent Proof GYTA/GYXTW/GYTS/GYFTS Quality Direct Buried Communication Armored Fiber Optical Cable
Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 0 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 1 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 2 Underground Armored Fiber Optic Cable with ITU G652D/G657A/OM1-OM4 Fibers Compliant with YD/T901-2009 & IEC 60794-1 Standards 3
Technical Specifications
Parameter G.652 G.655 50/125 μm 62.5/125 μm
Attenuation (+20°C)
@850nm ≤3.0dB/km ≤3.3dB/km
@1300nm ≤1.0dB/km ≤1.0dB/km
@1310nm ≤0.36dB/km ≤0.40dB/km
@1550nm ≤0.22dB/km ≤0.23 dB/km
Bandwidth (A-level) ≥500 MHz*km ≥200 MHz*km
@1300nm ≥1000 MHz*km ≥600 MHz*km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Optical fiber cable cut-off wavelength ≤1260nm ≤1450nm

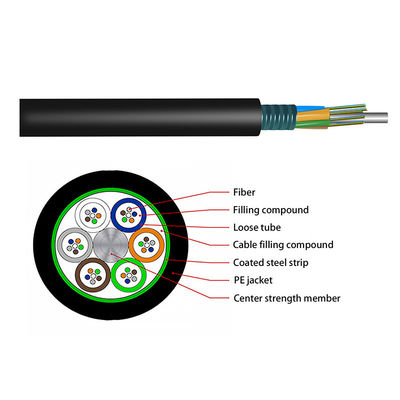

Fiber Optic Cable Configuration
Type Number of fibers Number of casings Number of filling ropes Diameter (mm)
GYTA-2~6 2~6 1 4 9.2
GYTA-8~12 8~12 2 3 9.2
GYTA-14～18 14~18 3 2 9.2
GYTA-20~24 20~24 4 1 9.2
GYTA-26~30 26~30 5 0 9.2
GYTA-32~36 32~36 6 0 9.7
GYTA-38～48 38~48 4 1 10.5
GYTA-50~60 50~60 5 0 10.5
Mechanical Properties
Weight (kg/km) Allowable tensile force (N) Allowable flat pressure (N/100mm) Bending radius (mm)
80 600/1500 300/1000 10D/20D
*Storage and use temperature: -40°C to +70°C. (The above parameters are for reference only)
Key Characteristics
  • Steel jacket offers high tension and crush resistance

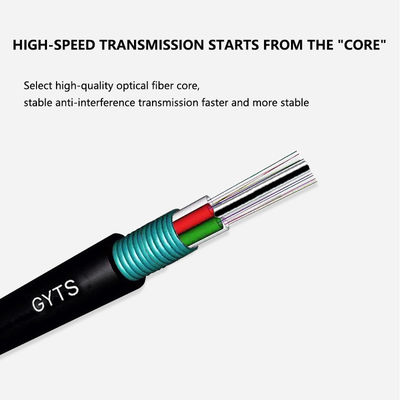

  • Special gel in the tube offers critical protection for the fibers

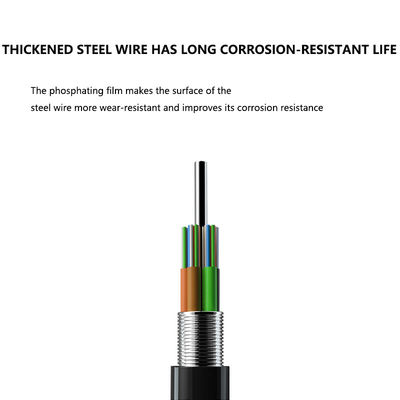

  • With steel central strength member

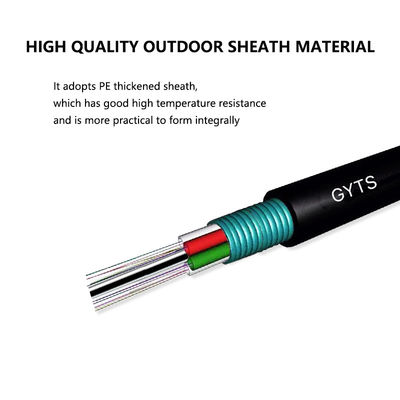

  • PE jacket prevents UV damage (UV-resistant material can be added)
  • Performs well under high and low temperatures
  • Anti-aging properties
Applications
  • Conduit/buried installations
  • Connecting communication equipment
  • Multi-core wiring systems in data centers
Standards Compliance
  • GYTS complies with YD/T901-2009 and IEC 60794-1 standards
Frequently Asked Questions
1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!
2. What is your minimum quantity?
1KM. We support new project of our customers, trial order is available.
3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing and so on).
5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.
Tag:

kabel luar lapis baja

Kabel optik lapis baja

Kabel Serat Optik Multimode Lapisan

Harga yang bagus on line
