GYFTA53 Double Armored Fiber Optic Cable with 2-288 Cores Loose Tube Stranded Design for Direct Burial Applications

Nama merek:	HXCOWO
Nomor Model:	HX SW5 adalah
MOQ:	50

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

Nomor inti serat:

2-288 core

Tipe serat:

G652D/G657A1/G657A2

Rentang diameter:

13,9-20,2 mm

kisaran berat:

202-333kg/km

Gaya tarik yang diijinkan:

1000/3000 N

Tekanan yang diijinkan:

1000/3000 N/100mm

Suhu operasi:

-40 ℃ hingga +70 ℃

Metode peletakan:

Pemakaman Langsung

Bahan jaket:

PVC LSZH LSOH PE HDPE

Bahan selubung:

PE/PVC/LSZH/PC

Jumlah konduktor:

Jenis kabel:

lapis baja luar ruangan

Kekuatan tarik:

1000-3000N

Jumlah serat:

2-288 core

Jenis Paket:

Drum kayu

Menyoroti:

2-288 Cores Fiber Optic Cable

Loose Tube Armored Fiber Optic Cable

Stranded GYFTA53 Fiber Cable

Deskripsi Produk

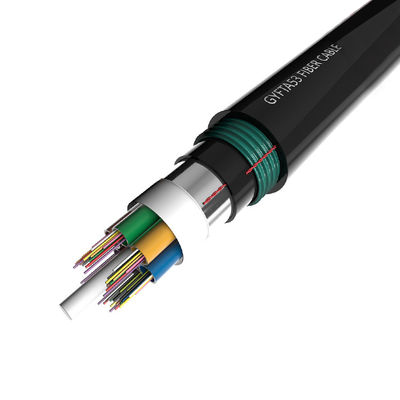

HXCOWO GYFTA53 Underground Direct Burial Stranded Loose Tube Double Armored Fiber Optic Cable

TECHNICAL PARAMETERS

Fiber Core Number	Diameter (mm)	Weight (kg/km)
2-36	13.9	202
38-72	15.1	241
74-96	17.1	290
98-120	18.6	333
122-144	20.2	281

Allowable Tensile Force (N)	Allowable Pressure (N/100mm)
Long Term: 1000 Short Term: 3000	Long Term: 1000 Short Term: 3000

Scope of application: Suitable for long-distance communication and inter-office communication

Fiber type: G652D

Laying method: Direct burial

Operating temperature: -40℃ to +70℃

PRODUCT DESCRIPTION

GYFTA53 SINGLE-MODE OUTDOOR DOUBLE ARMORED FIBER OPTIC CABLES - Applied to underground laying, outdoor overhead, and indoor trunking installations.

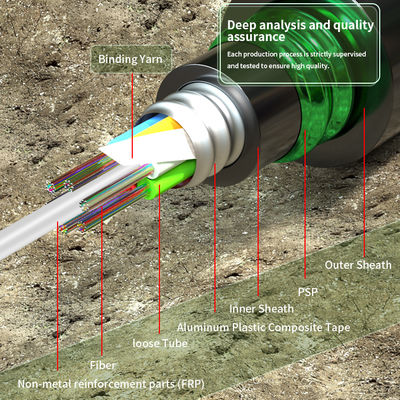

DEEP ANALYSIS AND QUALITY ASSURANCE

Each production process is strictly supervised and tested to ensure high quality.

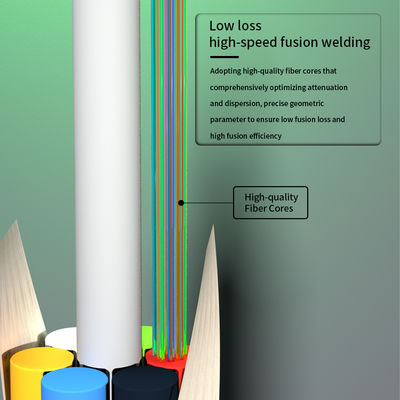

LOW LOSS, HIGH-SPEED FUSION WELDING

Adopting high-quality fiber cores that comprehensively optimize attenuation and dispersion, with precise geometric parameters to ensure low fusion loss and high fusion efficiency.

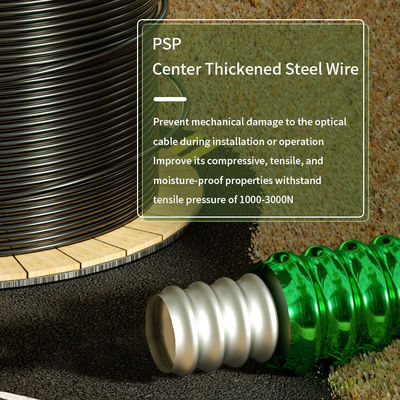

PSP CENTER THICKENED STEEL WIRE

Prevents mechanical damage to the optical cable during installation or operation. Improves compressive, tensile, and moisture-proof properties, withstanding tensile pressure of 1000-3000N.

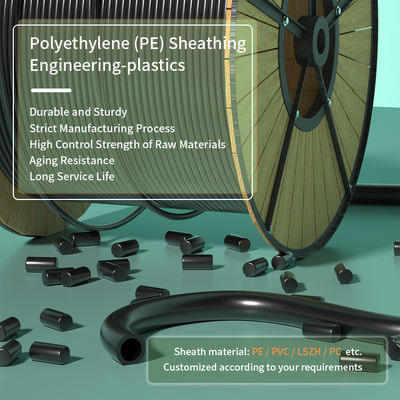

POLYETHYLENE (PE) SHEATHING ENGINEERING-PLASTICS

Durable and sturdy with strict manufacturing process and high control strength of raw materials. Features aging resistance and long service life.

Sheath material options: PE/PVC/LSZH/PC etc. Customized according to your requirements.

CLEAR METER MARKERS

Clear meter markings on the PE outer sheath for convenient and fast construction wiring.

PRODUCT DESIGN

Accept customization. Put your good idea into reality and click "Contact Us"

COMPANY PROFILE

Dongguan HX Fiber Technology Co., Ltd., one of the most outstanding fiber optic cable manufacturers in south China, located next to the sea port of Shenzhen. The company was founded in 2010 with its own brand HXCOWO, dedicated to providing optical fiber cabling system solutions for data centers, enterprise networks, and operators.

With over 10 years' development, a registered capital of USD 5 million, a 6,000 sqm workplace, 7 production assemblies were built and about 70 skilled workers. Our monthly output can reach up to 1500km fiber optic cables.

Quality is our culture & long term business is our goal. With an excellent management system, we passed ISO9001:2015 certificate in 2021. Our products are exported to Europe, America, Asia, South America, and Africa.

FAQ

1. Are you the real manufacturer?
Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?
1KM. We support new projects of our customers, trial order is available.

3. Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?
Yes, we can customize according to your requirements (logo, package, printing etc.).

5. How long will it take you to deliver?
Our usual delivery date takes 15 to 20 days.

6. Can we trust you?
We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?
At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?
L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?
Ocean transportation, air transport, Express, etc.
