Outdoor Armored Fiber Optic Cable with Multi-Loose Tube Structure and Steel Wire Strength Member for Duct and Conduit Application

Nama merek:	HX
Nomor Model:	HX-GL2
MOQ:	1

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

CE/ROHS/ISO9001

Jumlah konduktor:

Warna kabel:

Hitam

Bahan jaket:

Jaket PE

Struktur kabel:

Tabung Multi-Longgar

Opsi serat:

Itu G652D, G657A, Om1, Om2, Om3, Om4

Anggota kekuatan:

Kawat Baja Pusat atau Plastik yang diperkuat Fiberglass (FRP)

Atenuasi @850nm:

≤3,0dB/km (50/125 μm), ≤3,3dB/km (62,5/125 μm)

Atenuasi @1300nm:

≤1.0dB/km

Atenuasi @1310nm:

≤0,36dB/km (G.652), ≤0,40dB/km (G.655)

Atenuasi @1550nm:

≤0,22dB/km (G.652), ≤0,23dB/km (G.655)

Bandwidth @850nm:

≥500 MHz*km (50/125 μm), ≥200 MHz*km (62,5/125 μm)

Bandwidth @1300nm:

≥1000 MHz*km (50/125 μm), ≥600 MHz*km (62,5/125 μm)

Bukaan numerik:

0,200±0,015NA (50/125 μm), 0,275±0,015NA (62,5/125 μm)

Panjang gelombang potong:

≤1260nm (G.652), ≤1450nm (G.655)

Kisaran suhu:

-40 ° C hingga +70 ° C.

Menyoroti:

Multi-Loose Tube Structure Fiber Optic Cable

Steel Wire Strength Member Armored Cable

Duct and Conduit Application Outdoor Cable

Deskripsi Produk

Wholesale Best Selling Armoured Cable Underground GYTS GYTA 12 24 48 96 Core Fiber Optic Cable For Duct

Key Specifications

Parameter	G.652	G.655	50/125 μm	62.5/125 μm
Attenuation (+20°C)
@850nm			≤3.0dB/km	≤3.3dB/km
@1300nm			≤1.0dB/km	≤1.0dB/km
@1310nm	≤0.36dB/km	≤0.40dB/km
@1550nm	≤0.22dB/km	≤0.23 dB/km
Bandwidth (A-level)			≥500 MHz*km	≥200 MHz*km
@1300nm			≥1000 MHz*km	≥600 MHz*km
Numerical aperture			0.200±0.015NA	0.275±0.015NA
Optical fiber cable cut-off wavelength	≤1260nm	≤1450nm

Fiber Optic Cable Specifications

Optic fibre cable	Number of fibers	Number of casings	Number of filling ropes	Fiber optic cable diameter (mm)
GYTA-2~6	2~6	1	4	9.2
GYTA-8~12	8~12	2	3	9.2
GYTA-14～18	14~18	3	2	9.2
GYTA-20~24	20~24	4	1	9.2
GYTA-26~30	26~30	5	0	9.2
GYTA-32~36	32~36	6	0	9.7
GYTA-38～48	38~48	4	1	10.5
GYTA-50~60	50~60	5	0	10.5
GYTA-62~72	62~72	6	0	11.5
GYTA-74~84	74~84	7	1	13.2
GYTA-86～96	86~96	8	0	13.2

Mechanical Properties

Fiber Optic Cable Weight (kg/km)	Allowable tensile force long term/short term (N)	Allowable flat pressure long term/short term (N/100mm)	Bending radius static/dynamic (mm)
80	600/1500	300/1000	10D/20D
97	1000/3000

Storage and Operating Conditions

Temperature range: -40°C to +70°C (The above parameters are for reference only)

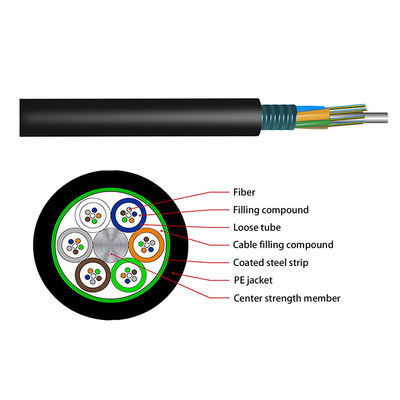

Product Characteristics

Steel jacket offers high tension and crush resistance
Special gel in the tube offers critical protection for the fibers

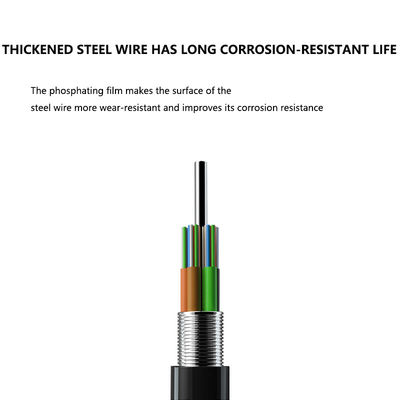

With steel central strength member

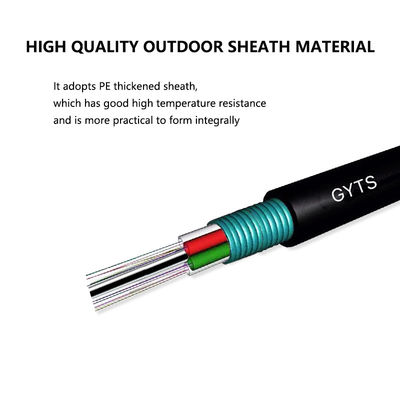

PE jacket prevents UV damage (UV material can be added)
Excellent performance under high and low temperatures
Anti-aging properties

Applications

Conduit/buried installations
Connecting communication equipment
Multi-core wiring systems in data centers

Standards Compliance

GYTS complies with YD/T901-2009 and IEC 60794-1 standards

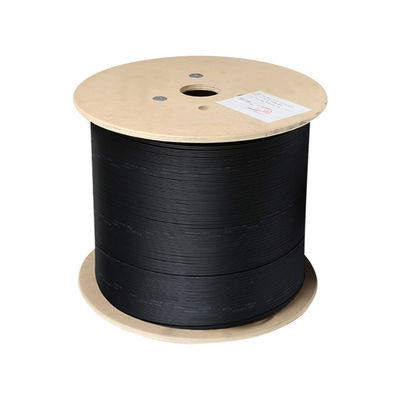

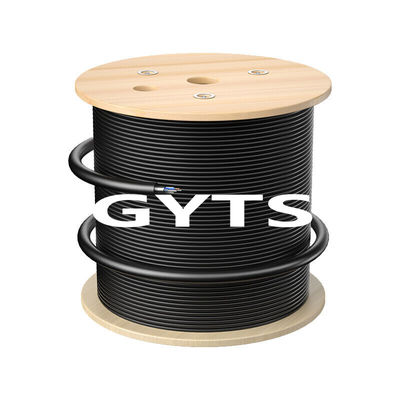

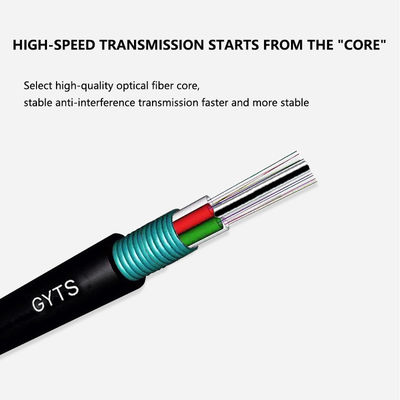

Product Images

Frequently Asked Questions

1. Are you the real manufacturer?

Yes. We are the real manufacturer with more than 20 years' history, welcome to visit us!

2. What is your minimum quantity?

1KM. We support new project of our customers, trial order is available.

3. Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4. Can you customize the product?

Yes, we can customize according to your requirements (logo, package, printing and so on).

5. How long will it take you to deliver?

Our usual delivery date takes 15 to 20 days.

6. Can we trust you?

We founded the factory has 18 years of history, products exported to over 25 countries.

7. How about your price?

At the same price, our quality is better; at the same quality, our price is more favorable.

8. What about Payment?

L/C, T/T, Western Union and Paypal are acceptable.

9. What mode of transportation do you support?

Ocean transportation, air transport, Express, etc.
